So, I've been wanting to build several things for the shop, a Cyclone dust collector is on the list as well as a ceiling mount air cleaner. I have seen one process on the net here but I would like some other ideas, mostly about the fan/blower. What or where would I find a blower for a standard air cleaner? Does anyone here know?

How about a couple of range hood fans, would that be enough CFM I wonder? I can buy the the filters at Lee Valley for around $40 for the 6 pocket filter and the other can be a simple furnace filter I think.

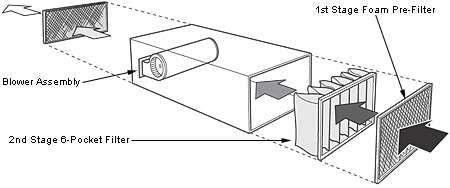

This is the layout I'm thinking of, but I just need the blower.

As most of you know by know, I'm cheap and I like to build things myself so this and the cyclone should be no surprise.

Anyone have any ideas or help?

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 11:31 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Dec 27, 2004 9:42 pm
Posts: 4217
Location: Buffalo, NY
First name: Robert
Last Name: Cefalu
City: Buffalo
State: NY
Zip/Postal Code: 14217
Country: US
Rod try this link.

http://www.pennstateind.com/

_________________
Beautiful and unusual tone woods at a reasonable price.
http://www.rctonewoods.com/RCT_Store
The Zootman
1109 Military Rd.
Kenmore, NY 14217
(716) 874-1498


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 12:47 pm
Offline
Koa
Koa

Joined: Thu Feb 17, 2005 3:38 pm
Posts: 1542
Location: United States
    I made one and gave up on it. I then bought one from Grizzly. An investment. It really helps. You do want to be able to move the volume of your shop about 6 to 8 times and hour.
     Your health is worth every cent. Blower fans and such do not have the power. Save your time and money and buy one allready made. You need alot of cu ft / min

john hall tippie5338752.8677199074


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 12:55 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
John, I've been thinking about that and my shop is only 185 sft, so if I even what to clear the air 10 times per hour, I would only need 250 CFM (minimum) I was thinking of using two range hood fans, they are about 250 CFM each, I'll try it I think and if it doesn't work, than I'll probably buy one.

Thanks though

Anyone else?

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 1:22 pm
Offline
Koa
Koa
User avatar

Joined: Thu Feb 24, 2005 4:53 am
Posts: 1584
Location: PA, United States
what about those squirrel cage furnace fans?


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 1:45 pm
Offline
Koa
Koa

Joined: Thu Feb 17, 2005 3:38 pm
Posts: 1542
Location: United States
Rod
You have to understand that that rate is figured in open flow. When you put a 20 micron filter with a 5 mircon flow bag you will kill that flow and those fans don't have that kind of power. You need a good 1/2 to 3/4 hp squirell fan.
   They have the power but till you go and spend that hind of money along with the time you can buy something that is engineered and box ready. I have a large shop 24 by 40 2 floors and the unit for my shop was $200. Worth every cent and then some.
    I know it can be fun making your own stuff but the one I made cost about $40 more than the one I bought and works 10 times better , and I ain't no slouch.
   I think what makes the bought unit so much better is
1 remote control and on a timer
2 the fan though a squirel fan has a different blade
3 the filters are comercially available and designed for air cleaners , not furnaces
4 the inside 5 micron filter bags make this a 2 stage filter and the flow is speed is adjustable in 3 speeds for when I am working and putting dust in the air
and other speeds for just filtering air and a third speed I can run after I leave to clean the air and keep alot of dust from settling.
    Sometimes cheaper costs more
john hall


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 2:46 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
Too true John, I love your input.

Thanks

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 2:47 pm
Offline
Mahogany
Mahogany

Joined: Mon Oct 24, 2005 12:35 am
Posts: 66
Location: United States
I agree John. I also need a real solution for the dust.

In the mean time I use the shop vac (with disposible bag) on or near the tool as possible. A 20 x 20 box fan with a micron furnace filter in front of it runs most of the day and certainly picks up a lot of pretty fine dust. I also wear the better grade of 3M dust mask with the purge valve and two rubber straps.

Last week I opened the garage door and used the leaf blower to clear out the corners but it's a losing battle. Sometimes you just HAVE to buy a new tool!

Kurt


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 2:47 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada


Your right, for $200 clams, that's a pretty good deal.

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 3:59 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jan 31, 2005 11:53 am
Posts: 320
Location: United States
First name: Scott
Last Name: Thompson
Ron, also look at the Delta AP200. On Amazon it is $170 and free shipping . I have been using mine since last spring and I'm very happy with it.

_________________
Scott Thompson
Port Townsend,WA

"In a perfect world we'd all sing in tune
But this is reality so give me some room"
-Billy Bragg


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 4:57 pm
Offline
Old Growth Brazilian Rosewood
Old Growth Brazilian Rosewood
User avatar

Joined: Mon Dec 27, 2004 1:20 pm
Posts: 5915
Location: United States

Following on John's comments, besides.... to make these truly worthwhile they need to trap 1 micron particles.

I have read a good bit about dust and the smallest particles are the ones that can be the most damaging.

I have a delta, it is very nice. My only real complaint about it is the noise.


_________________
Brock Poling
Columbus, Ohio
http://www.polingguitars.com


Top
 Profile

 Post subject:
PostPosted: Sat Feb 04, 2006 6:21 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
[QUOTE=Brock Poling]I have a delta, it is very nice. My only real complaint about it is the noise.[/QUOTE]

Oh, I'm sure most of your other power tools drown out the 60db's quite nicely.

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject:
PostPosted: Sun Feb 05, 2006 12:42 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Sun Dec 25, 2005 6:32 am
Posts: 7774
Location: Canada
Rod, did you check with busy bee? the b2055 air cleaner for 229$ with 3 years warranty, worth looking at the spec sheet.

SergeSerge Poirier38753.3631712963


Top
 Profile

 Post subject:
PostPosted: Sun Feb 05, 2006 2:48 am
Offline
Contributing Member
Contributing Member

Joined: Mon Dec 27, 2004 11:25 pm
Posts: 7207
Location: United States
I hear great things about the JDS units...available at Woodcraft and other places.

_________________
"I want to know what kind of pickups Vince Gill uses in his Tele, because if I had those, as good of a player as I am, I'm sure I could make it sound like that.
Only badly."


Top
 Profile

 Post subject:
PostPosted: Sun Feb 05, 2006 1:44 pm
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Sun Dec 25, 2005 6:32 am
Posts: 7774
Location: Canada
Rod, depending on your shop's size, you might want to check at Lee Valley for the small air cleaner they sell for 149$ that will filter a room 18'x15'x 8', 6-10 times /hour.

Serge


Top
 Profile

 Post subject:
PostPosted: Mon Feb 06, 2006 12:23 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Mon Feb 21, 2005 6:16 am
Posts: 2244
Location: United States
First name: michael
Last Name: mcclain
City: pendleton
State: sc
Zip/Postal Code: 29670
Status: Professional
if you have to buy your bag filter and blower it is a lot easier and just about as cheap to by the complete unit.

i stumbled on to four(yes 4) delta bag filters on a lowes clearance table a few years back at $5 each and was given a couple of very strong furnace blowers which really move air. one is even a four speed unit. so building the air cleaners was a simple decision.

furnace blowers are often available free or at very little cost from hva contractors.crazymanmichael38754.3507986111


Top
 Profile

 Post subject:
PostPosted: Mon Feb 06, 2006 8:07 am
Offline
Cocobolo
Cocobolo

Joined: Fri Jan 07, 2005 3:46 pm
Posts: 372
Location: Golden, Colorado
First name: Roger
Last Name: Labbe
[QUOTE=Don Williams] I hear great things about the JDS units...available at Woodcraft and other places.[/QUOTE]

I have one, and think it's great. On high it creates a noticible breeze in my shop (it's a very small shop), and on low the sound is not terribly distracting. I think it'd be hard to match the quality and pricepoint (factoring in labor time) on your own. I love the remote control, and the ability to run it on a timer for awhile after I leave the shop.

rlabbe38754.6733796296


Top
 Profile

 Post subject:
PostPosted: Mon Feb 06, 2006 12:38 pm
Offline
Koa
Koa
User avatar

Joined: Mon Sep 12, 2005 12:40 am
Posts: 1900
Location: Spokane, Washington
First name: Pat
Last Name: Foster
State: Eastern WA
Focus: Build
[QUOTE=tippie53]
and I ain't no slouch.
   [/QUOTE]

That's quite an understatement, John!

_________________
now known around here as Pat Foster
_________________
http://www.patfosterguitars.com
